Florian.m Newbie

Florian.m

Posted
Posted (edited)

buna ziua. Imi cer scuze daca am postat gresit,nu prea ma pricep la aceste lucruri.

 Intrebarea mea este urmatoarea,ma poate ajuta cineva sa inentific mufa de la camera spate la un F 11  lci din 2015 cu navigatie business cu display mic?

Am demontat unitatea,am gasit 10 mufe de culori diferite. Am reusit sa identific prin deconectare doar antena radio si cea de satelit. Restul,le deconectez dar functioneaza totul,cel putin aparent.

 Am deconectat pe rand toate mufele,in marsarier cu motorul pornit,dar imaginea din spate nu dispare.

 Exista o singura mufa pe care daca o deconectez imi apare mesajul,,fara semnal" pe display si nu se vede nimic absolut.

 Multumesc.

Edited by Florian.m
Link to comment
Share on other sites
redog4dy Proficient

redog4dy

Posted
Posted (edited)

Aia cu no signal este mufa lvds care duce la display dacă este mov și are 4 pini rotund, și doi în lateral. Scrie ultimele 7 din serie aici..

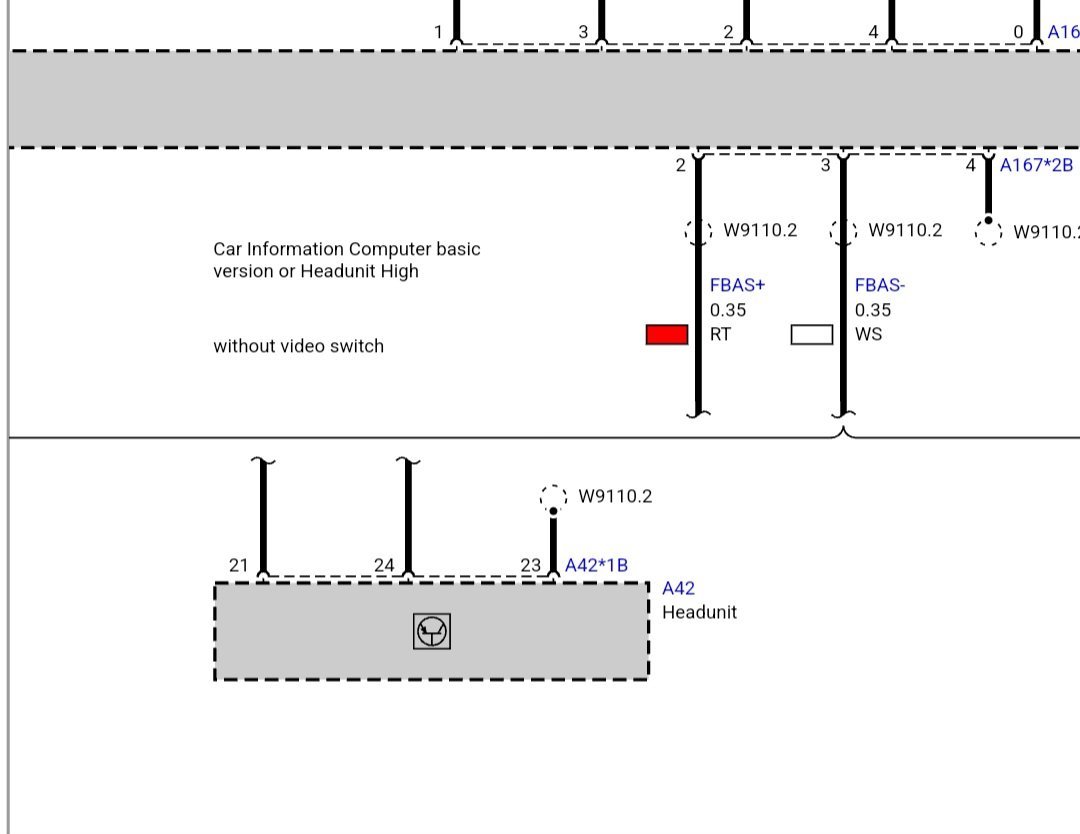

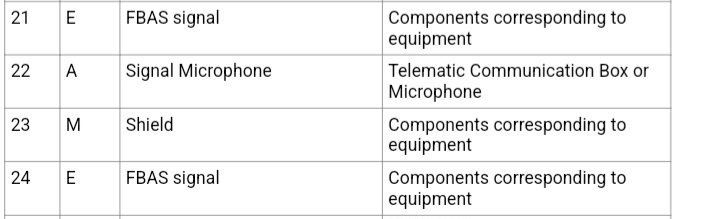

La unitate ar trebui să ai trei pini: 21, 24, 23
